1. STRUCTURE

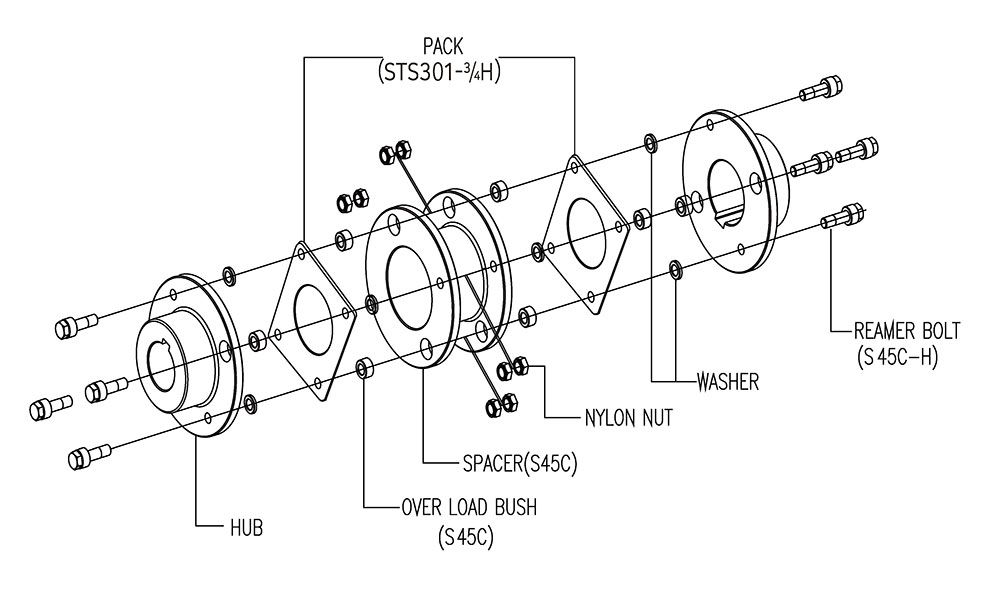

check_boxF - Type (4 BOLT)

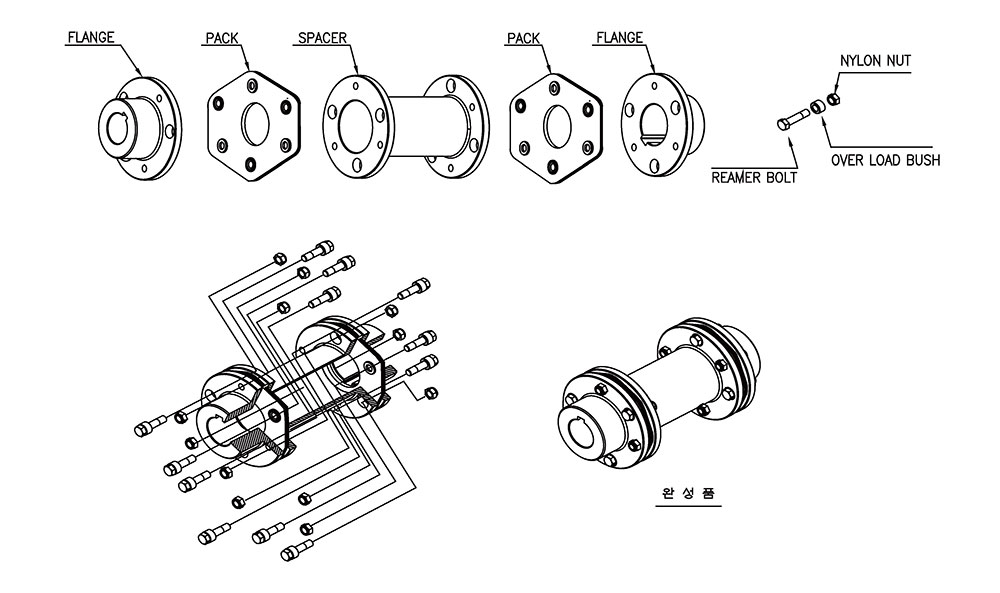

check_boxS-Type (6 BOLT)

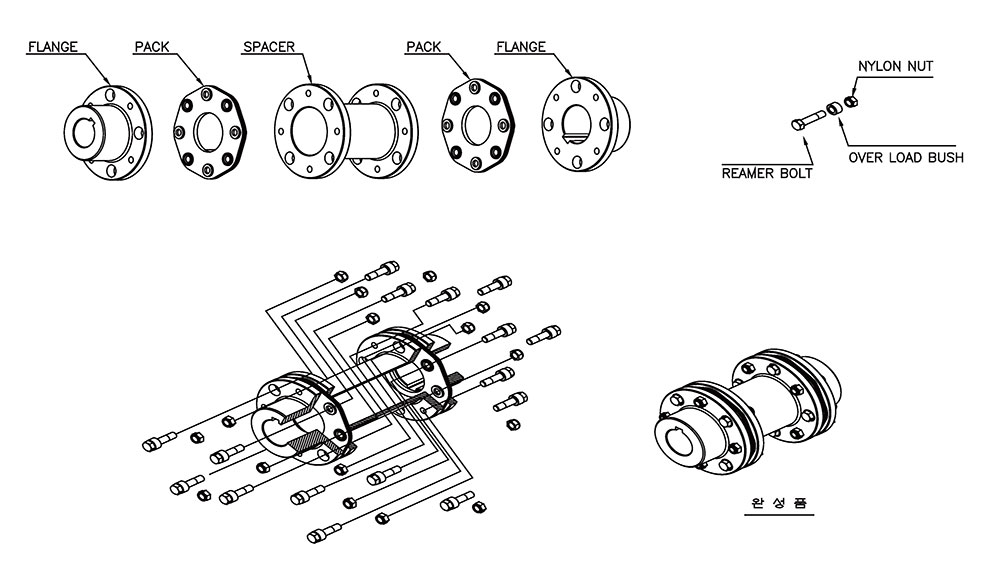

check_boxE-Type (8 BOLT)

2. CHARACTERISTIC

1) The lubricant is not required.

- The Lubricants do not need, because the friction and electric parts, no noise and wear and is clean.

2) Maintenance free

- All metal construction and no wearing parts need no maintenance.

- Axis and axis errors, even if the displacement is allowed because there is little wear if you install using assembled by minimizing the error can increase index

- finitely. Therefore, it is suitable for long-term use.

3) Simple design, lightweight and high torque.

- Disc flex couplings are manufactured for torque from 3.4(kg·m) to 18,160(kg·m), in various size available.

4) Disc flex couplings are able to absorb axial, angular and parallel misalignment.

- Flexible couplings prevent problems by absorbing shaft misalignment while transmitting torque : this puts an opposing load on the shaft

5) No backlash and high torsional stiffness.

- This coupling has given outstanding service for instance in regulating and control drives. For equipment such as machine tools with numerical controllers, indexing systems, and printing machine. Pan-flex couplings are better than other couplings.

6) High performance.

- High temperature (Max 150℃) does not affect the all metal construction.

7) Easy to mount and dismount.

- Disc flex couplings has small number of parts and simple constructions which allow quick and easy mounting and dismounting work.

7) Safety measure.

- When a severe over load may damage the disc plate the transmitting rotation will be possible through over load bush.

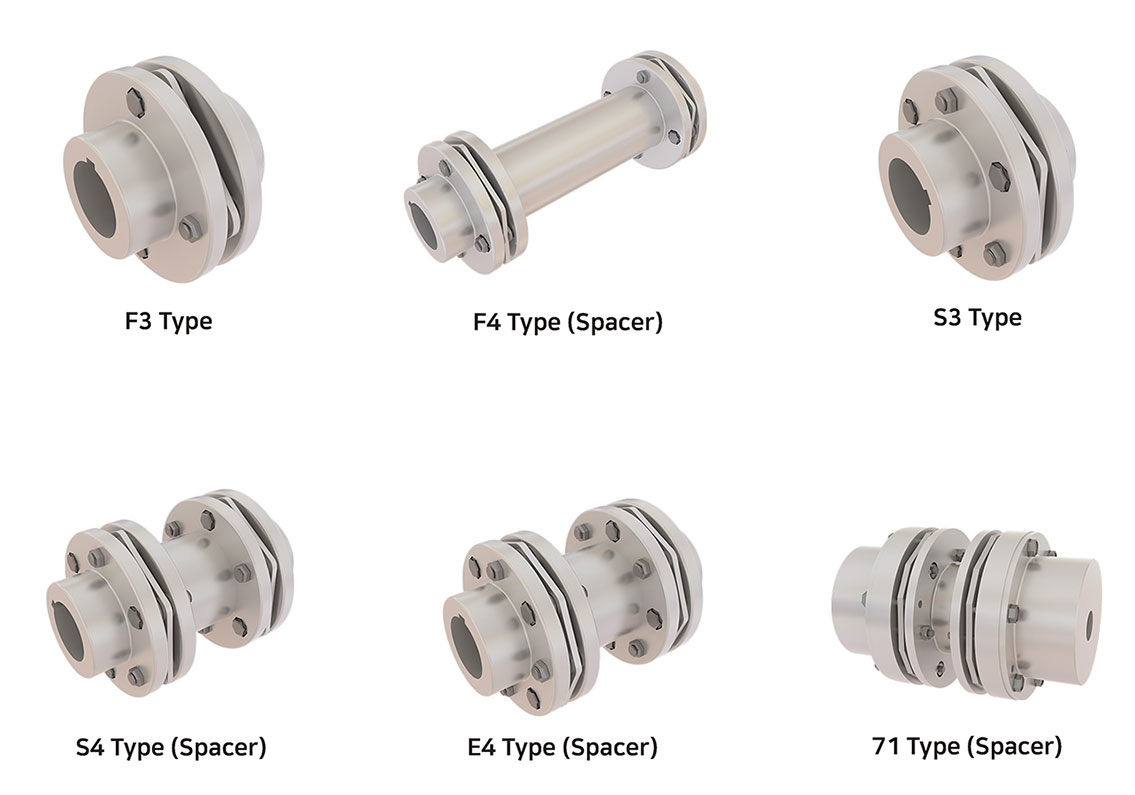

3. TYPE OF DISC PACK)

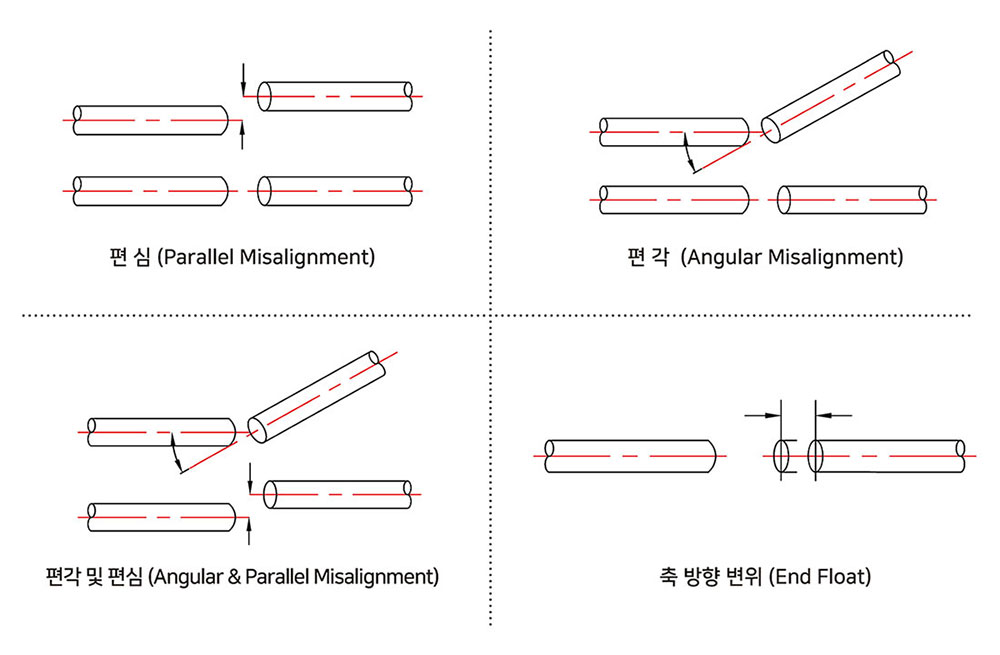

4. MISALIGNMENT

▶ The shaft may be misaligned by various causes.

- Such as the effects of heat, settling foundation, vibration and worm bearing etc. The initial alignment is not correct and heavy stress is imposed on the coupling it will cause reduction of coupling life due to small capacity of absorbing misalignment. Any or all of the misalignment shown in the above illustrations are presented in all connected drives.

5. DIMENSIONS

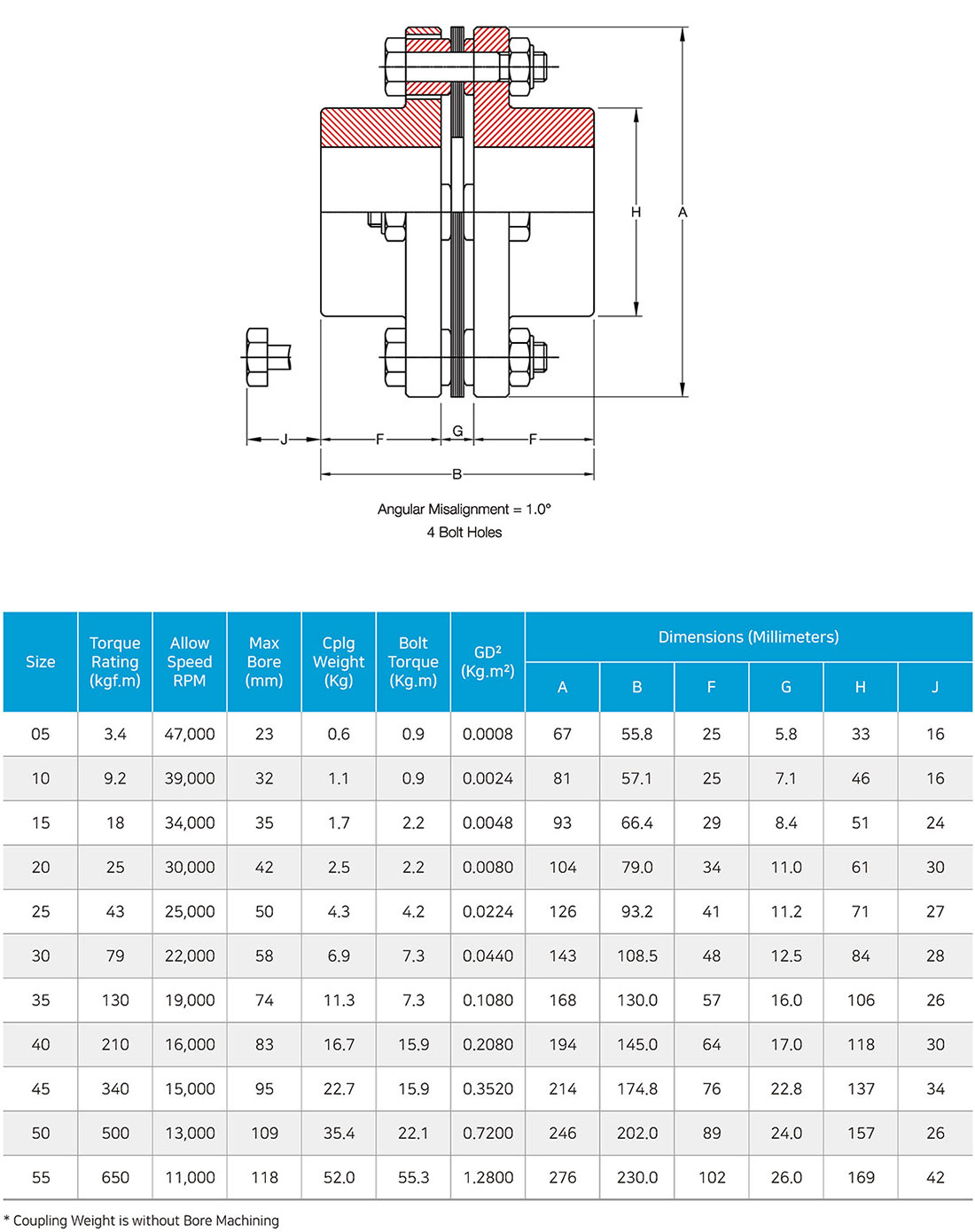

1) F3 (4-Bolt Single) Type

2) F4 (4-Bolt Double) Type

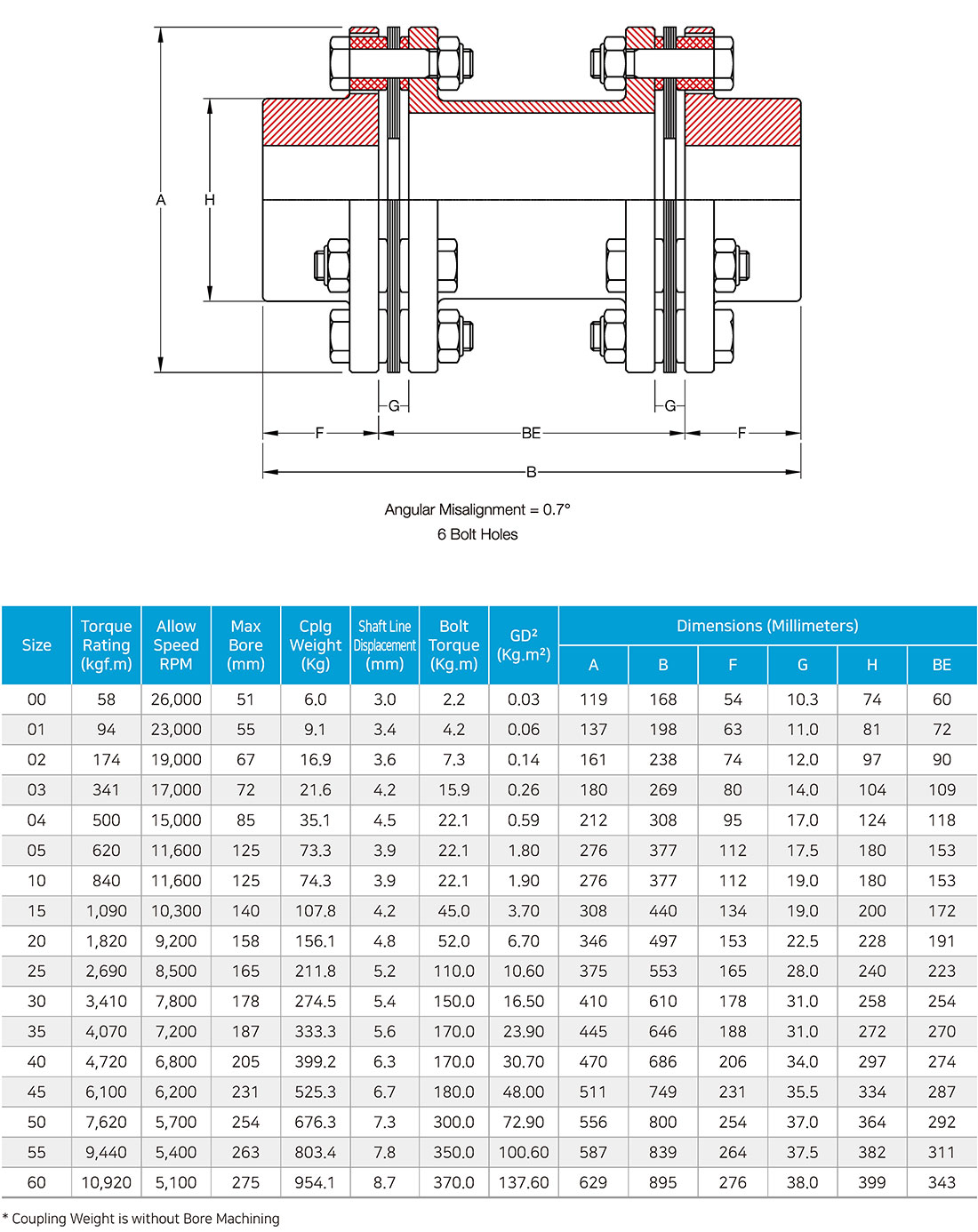

3) S4 (6-Bolt Double) Type

4) E4 (8-Bolt Double) Type
